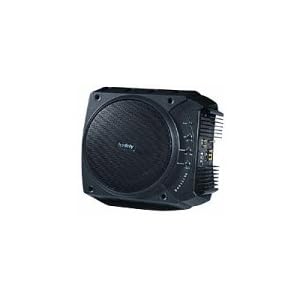

Infinity Basslink 200-Watt, Dual 10 Powered Subwoofer System (Black)



Infinity Basslink 200-Watt, Dual 10" Powered Subwoofer System (Black)



You Save : $185.83 (51%)

Item Description

Amazon.com Product Description
The BassLink line consists of every thing you need to have for superb bass in your car, with no hassle. This method contains a round ten-inch woofer, a round ten-inch passive radiator and a 200-watt Class D amplifier, plus all the controls you need to have to integrate its sound with your existing program. It can be mounted vertically or horizontally for uncomplicated placement in any vehicle.

Anything you want for good bass in your auto, with no hassle. Click to enlarge.

Remote level manage included.

Mount BassLink vertically or horizontally. Click to enlarge.
Developed to deliver low frequencies in practically any vehicle audio technique, BassLink truly has universal appeal. Smaller in size but major in output, BassLink needs a mere .75 cubic feet of trunk space however produces adequate bass to wake up the neighborhood.
BassLink consists of a ten-inch subwoofer, ten-inch passive radiator and a 200-watt Class D amplifier housed in a rigid polymer enclosure, all cautiously engineered to operate together as a special, integrated program. The really versatile BassLink accepts both speaker- and line-level inputs, and it gives an internal low-pass filter, proprietary signal processing and abundant amplification.
The BassLink method attributes a servo-manage circuit that continually monitors the voice coil's position in the magnetic gap and prevents the distortion that occurs when a standard woofer is overdriven. By integrating cone-excursion information and facts with the instantaneous demands of the music, BassLink can extract loud and deep bass from an enclosure smaller sized than any ahead of.
BassLink includes a fixed, 2nd-order, high-pass filter that eliminates the possibility of over-excursion beneath Fb, the resonant (tuned) frequency of the vented box. This permits the excursion-monitoring circuit to focus on the excursion at the alot more meaningful frequencies at and above Fb. The outcome is a significant increase in bass output.
User-adjustable controls let listeners to set the system's response to obtain optimum efficiency based on the vehicle's cabin obtain or transfer function. These controls consist of: a - or 180-degree phase switch a continuously variable electronic low-pass filter that is adjustable amongst 70 and 100Hz variable input sensitivity and Bass EQ that provides for adjustments amongst +three and -6dB. BassLink's frequency response in a typical automobile is 20 to 100Hz (+/-3dB), but this varies according to the vehicle and user adjustments. At maximum gain, the system can accept inputs as low as 250mV.
BassLink can accept up to 4 channels of input--to give nonfading bass--either from line-level signals through 4 RCA jacks or from high-level signals via a pair of Molex connectors, permitting BassLink to be conveniently connected to OEM systems. If employing the speaker-level inputs, an audio-sense circuit will turn on the amplifier whenever a signal is present. If the RCAs are put to use, a 12-volt, remote-turn-on lead is required. The technique has barrier strip connections for power, ground and remote turn-on.
What is in the BoxInfinity Basslink 200-Watt Powered Subwoofer Technique (Black), Bass level control, Wiring harnesses, Mounting feet, Mounting bolts, Directions

Product Details

• Product Dimensions: 18 x 16 x 13 inches ; 19.8 pounds
• Shipping Weight: 20 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B000063TJY
• Item model number: BASSLINK


Technical Details

• Powered subwoofer with onboard 200-Watt Class D amplifier
• Variable electronic crossover (50Hz to 120Hz), sensitivity, and bass-boost
• 10-Inch subwoofer and 10-inch passive radiator
• Variable Bass EQ (+3db to -6 db at 45Hz)
• Includes Basslink LC remote bass-level control

Customer Critiques

Following installing a new head unit and upgraded speakers, I identified the improvement more than the factory stereo to be very worthwhile. But I soon realized I was missing something: Bottom End. The tweeters and midranges are terrific but without solid bass, it just wasn't complete. My household technique has a full range of sound, and the bass is so solid you can really feel it. I needed this in the Jeep!
Asking about, I learned that enclosed, self-powered subwoofers are a fine option for Jeeps mainly because of the space-savings. 1 name kept coming up - Infinity Basslink.
This item fits in the compact region behind the rear seat of a Jeep Wrangler with no difficulty - even if you have the Add-A-Trunk. It is quick to run the power and speaker leads back to the unit and tie them into the main stereo. Of course you can have a technician do it but if you can wire your dwelling stereo, this is the similar deal.
I installed mine with a tiny extra wire in case I will need to move it higher when crossing streams.
Sound? This factor KICKS! It is tight, accurate, and gives that added bottom-finish I was searching for. Get this - you will have no regrets!

I have a honda S2000 two seater convertible and so space is a significant concern. The tech that was about to install the unit warned me not to get my hopes also high as the trunk mounting was going to limit the response and that convertibles are difficult to add bass too. I told him to go ahead and we'd see, 2 hours later when I picked it up we were each pleasantly suprised. The sound is kicking! If something it is way a great deal more power than I need to have. I am operating 2 componant infinity speakers in the front run on a 2 channel amp and an alpine headunit. I'm extremely pleased with the outcomes, you will not regret acquiring this item!
